New NXT 2.0 Retail Kit

If your Kit has this type of light sensor:-

you have an NXT 2.0 Retail MindStorms Kit. Congratulations! – This is a marvellous new Kit – you can use some of the Challenges, but there are quite a few little incompatibilities caused by the contents of this set differing from the NXT 1.0 Kits. These incompatibilities are being checked, and I hope to have Challenges that fit this new kit on the Web soon. In the meanwhile, have fun with the challenges marked as OK for the NXT 2, and also the built-in lessons LEGO has provided!

If you want to check the number of pieces in your NXT 2.0 LEGO set (LEGO part number 8547), a list is provided below. The list is also handy as the individual part numbers can be used when purchasing replacement pieces to replace any that are lost, broken, or sucked up by a vacuum cleaner...

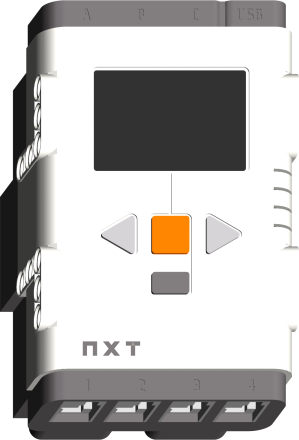

Picture Description Set 8547 Part number   Electric Cable NXT 20cm 1 Black 55804   Electric Cable NXT 35cm 4 Black 55805   Electric Cable NXT 50cm 2 Black 55806   Electric Mindstorms NXT  1 Light Stone 53788   Electric Mindstorms NXT Color Sensor / Color Lamp  1 Light Stone 64892   Electric Mindstorms NXT Motor  3 Light Stone 53787   Electric Mindstorms NXT Touch Sensor  2 Light Stone 53793   Electric Mindstorms NXT Ultrasonic Sensor  1 Light Stone 53792 [no image] Electric Serial Cable USB 1 None x1627 [no image] NXT 2.0 Software 1 Unknown 4558560 [no image] NXT 2.0 Sticker Sheet 1 None 4548564 [no image] NXT 2.0 Test Pad 8547 1 Unknown 4551600 [no image] NXT 2.0 User Guide 1 Unknown 4561597   Rubber Belt Small 2 None x71   Technic Angle Connector #1 5 Black 32013   Technic Angle Connector #2 6 Black 32034   Technic Angle Connector #6 12 Black 32014   Technic Axle 12 (black) 1 Black 3708   Technic Axle 2 Notched 9 Red 32062   Technic Axle 3 19 Mid stone 4519   Technic Axle 3 with Stud 6 Dark Stone 6587   Technic Axle 4 (black) 4 Black 3705   Technic Axle 5 8 Mid Stone 32073   Technic Axle 5.5 With Stop 2 Dark Stone 32209   Technic Axle 6 (black) 2 Black 3706 Technic Axle 7 4 Mid Stone 44294   Technic Axle 8 with Stop 4 Dark Stone x1739   Technic Axle 9 2 Mid Stone x1935   Technic Axle Joiner Double Flexible 4 Black 45590   Technic Axle Joiner Perp 3L 5 Black 32184   Technic Axle Joiner Perp Double 4 Mid Stone 32291   Technic Axle Joiner Perp Double Split 8 Mid Stone 41678   Technic Axle Joiner Perp with 2 Holes 16 Mid Stone 42003   Technic Axle Joiner Perpendicular 8 Mid Stone 6536   Technic Axle Joiner Without Ridges 4 Mid Stone 6538c   Technic Axle Pin 4 Tan 3749   Technic Axle Pin with Friction 24 Blue 43093   Technic Axle Towball 2 Mid Stone 2736   Technic Beam 11 6 Light Stone 32525   Technic Beam 13 10 Light Stone 41239   Technic Beam 15 2 Light Stone 32278   Technic Beam 2 Liftarm with Hole and Axlehole 8 Black 60483   Technic Beam 2 x 4 Liftarm Bent 90 17 Dark Stone 32140   Technic Beam 3 10 Dark Stone 32523   Technic Beam 3 with 4 x 6 Side Flaring Intake 3 Light Stone 61069   Technic Beam 3 with Panel Fairing Left 2 Light Stone 61071 Technic Beam 3 with Panel Fairing Right 2 Light Stone 61070   Technic Beam 3 x 3 T-shaped 2 Mid Stone 60484   Technic Beam 3 x 3.8 x 7 Liftarm Bent 45 Double 6 Mid Stone 32009   Technic Beam 3 x 5 Bent 90 14 Dark Stone 32526   Technic Beam 3 x 7 Liftarm Bent 53.5 10 Light Stone 32271   Technic Beam 4 x 4 Liftarm Bent 53.5 6 Mid Stone 32348   Technic Beam 4 x 6 Liftarm Bent 53.5 4 Dark Stone 6629   Technic Beam 5 18 Mid Stone 32316   Technic Beam 5 Bent 90 (3:3) w/4 Pins 6 Mid Stone 55615   Technic Beam 7 20 Light Stone 32524 Technic Beam 9 14 Light Stone 40490   Technic Bionicle 1 x 3 Tooth w/Axlehole 10 Orange x346   Technic Bionicle Ball 16.5 mm 12 Blue Green Red Yellow 54821   Technic Bionicle Weapon Ball Shooter 1 Pearl Dark Gray 54271   Technic Bionicle Weapon Ball Shooter Magazine 2 Pearl Dark Gray 53550   Technic Bush 11 Mid Stone 3713   Technic Bush 1/2 Smooth 9 Mid Stone 32123   Technic Cam 2 Dark Stone 6575   Technic Connector with Axlehole 6 Black 32039   Technic Cross Block 2 x 2 Bent 90 (Pin/Pin/Pin) 1 Mid Stone 44809   Technic Gear 12 Tooth Bevel 1 Tan 6589   Technic Gear 12 Tooth Double Bevel 2 Black 32270   Technic Gear 20 Tooth Double Bevel 2 Black 32269   Technic Gear 36 Tooth Double Bevel 2 Black x403   Technic Knob Wheel 4 Black 32072   Technic Pin 6 Mid Stone 3673   Technic Pin 1/2 2 Mid Stone 4274   Technic Pin 3L Double  3 Black 32136   Technic Pin Connector Perpendicular 1 x 3 with 4 Pins 14 Mid Stone 48989   Technic Pin Joiner Dual Perpendicular 6 Black 32557   Technic Pin Long 6 Tan 32556   Technic Pin Long with Friction and Slot 52 Blue 6558   Technic Pin Long with Stop Bush 10 Mid Stone 32054   Technic Pin Towball with Friction 10 Black 6628   Technic Pin with Friction and Slots 88 Black 2780   Technic Steering Link 9L 4 Black 32293   Technic Tread with Thirty-Six Ridges 2 Black x1681   Tile 1 x 2 with Groove 1 White 3069b   Tyre 43.2 x 22 ZR 4 Black 44309   Wheel 43.2 x 22 without Pinholes, with External Ribs 4 Mid Stone 56145
